1.The air end is efficient, energy-saving, stable and reliable, It is directly connected with the diesel engine through a high elastic coupling, with better reliability and longer service life.
2.Using the famous diesel engines at home and abroad to ensure high reliability of power operation, long service life and optimal fuel economy, such as Cummins, Yuchai and others.
3.The matching design of super large oil-water cooler and fan ensures better performance of compressor in low and high temperature.
4.It can still move flexibly under harsh terrain conditions.
5.Each compressor is equipped with lifting rings for safe and convenient hoisting and transportation.

[View original photo] [BACK]

[Previous page]

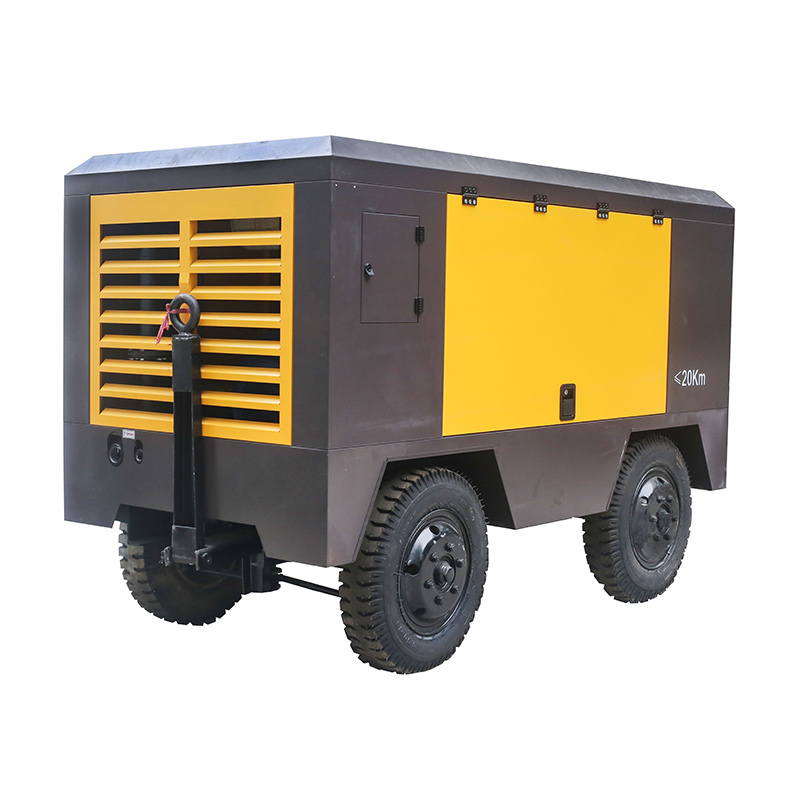

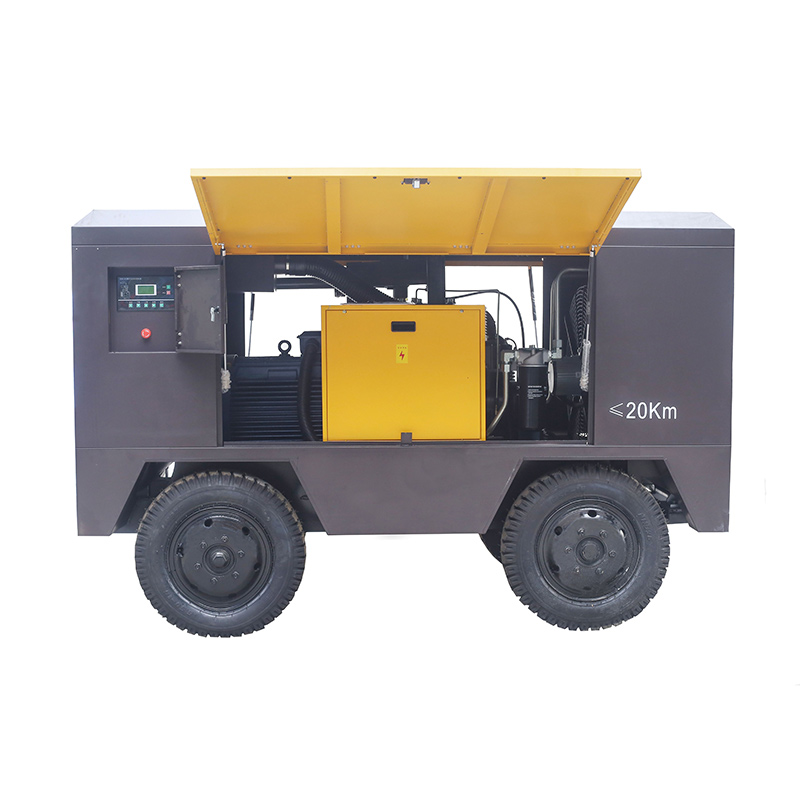

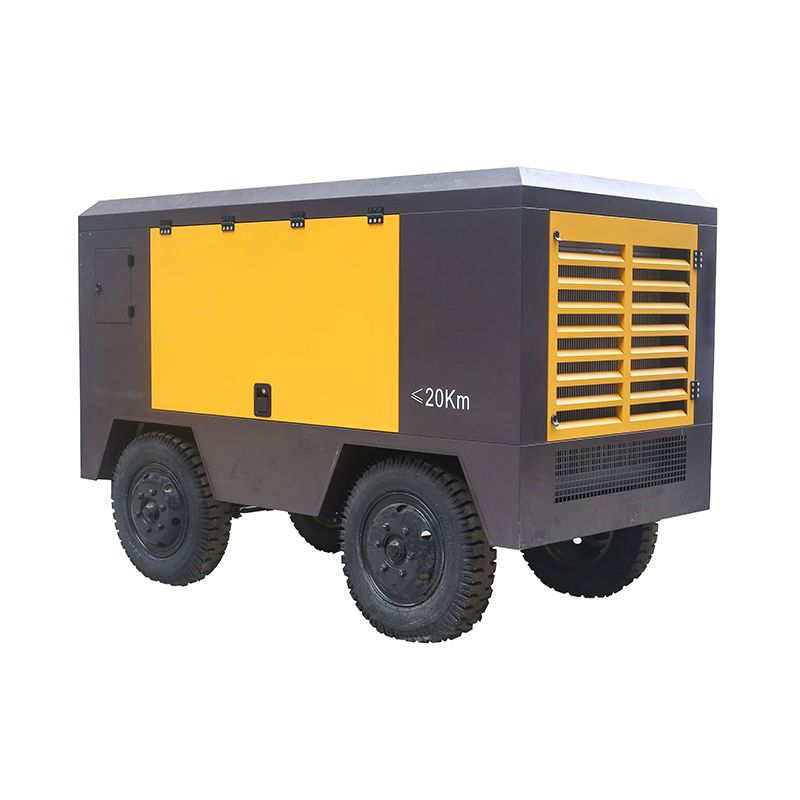

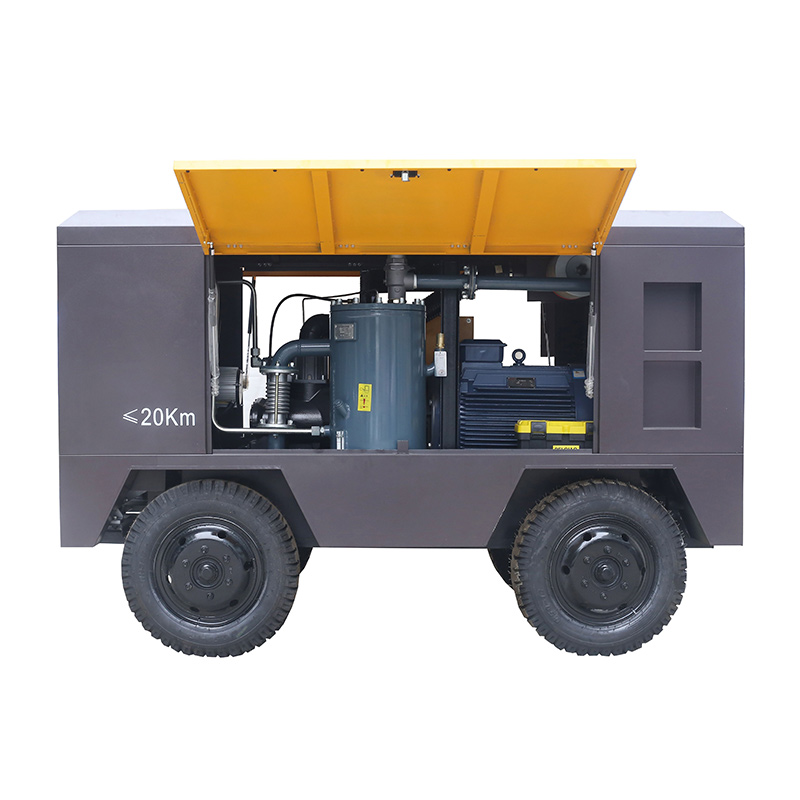

Diesel driving mobile screw air compressor

Technical Data Sheet

Technical parameters
Model		HRY-22-C	HRY-125-C	HRY-180-C	HRY-240-C
Air flow/Working preasure （m³/min/Mpa)		4.0/0.8	13.0/0.8	16.0/0.8	22.0/0.8
			10.0/1.0	14.0/1.3	18.0/1.3
			9.0/1.3	11.0/1.5	17.0/1.5
Dimension	Length mm	1700	3500	3500	3500
	Width mm	1100	1800	1800	1800
	Height mm	1400	2100	2100	2600
Net weight	KG	980	2500	2500	3500
Cooling mode		air cooling
Drive mode		belt drive	direct drive
Power source		diesel engine
Manufacturer		Changchai	Cummins	Cummins	Cummins
Type		EH36M	4BTA3.9-C125	6BT5.9-C180	C240
Full load speedr/min		2400	2200	220	2200
No-load speedr/min		1400	1400	1400	1400
Rated power（KW）		25	90	110	180
Electrical working capacity（V）		12	24	24	24
