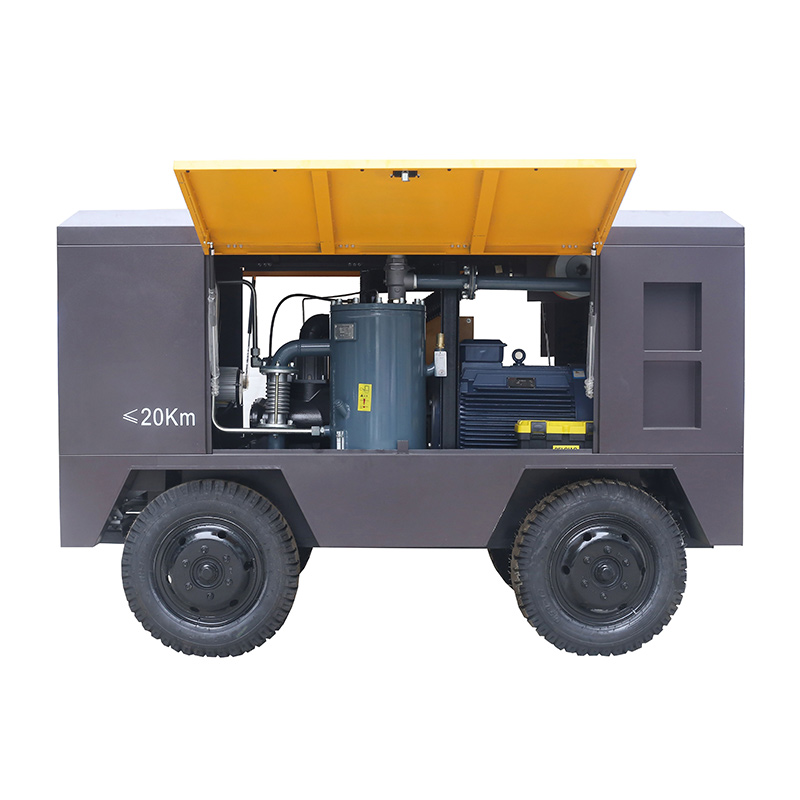

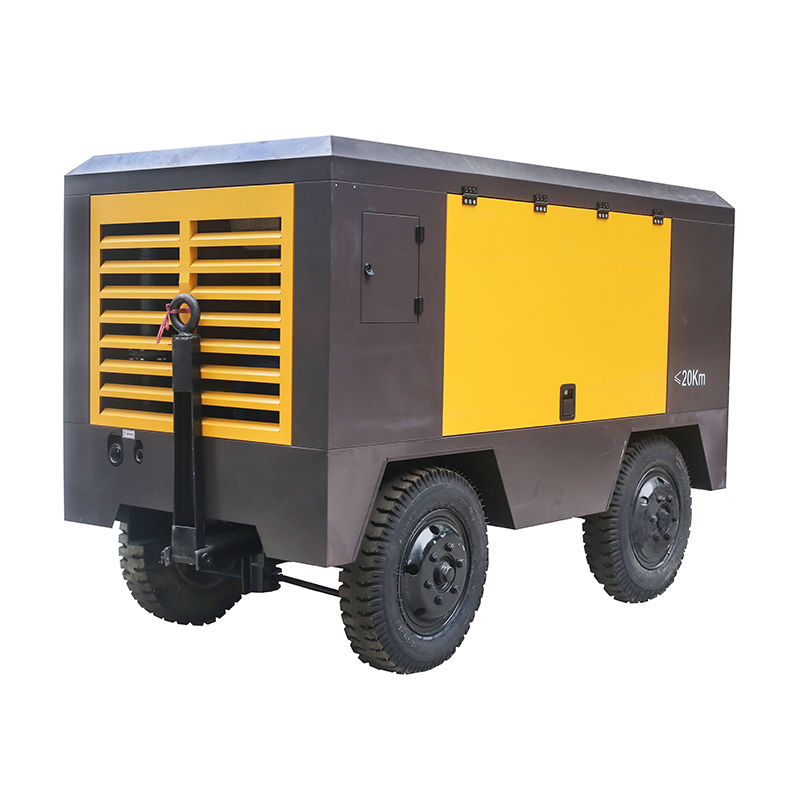

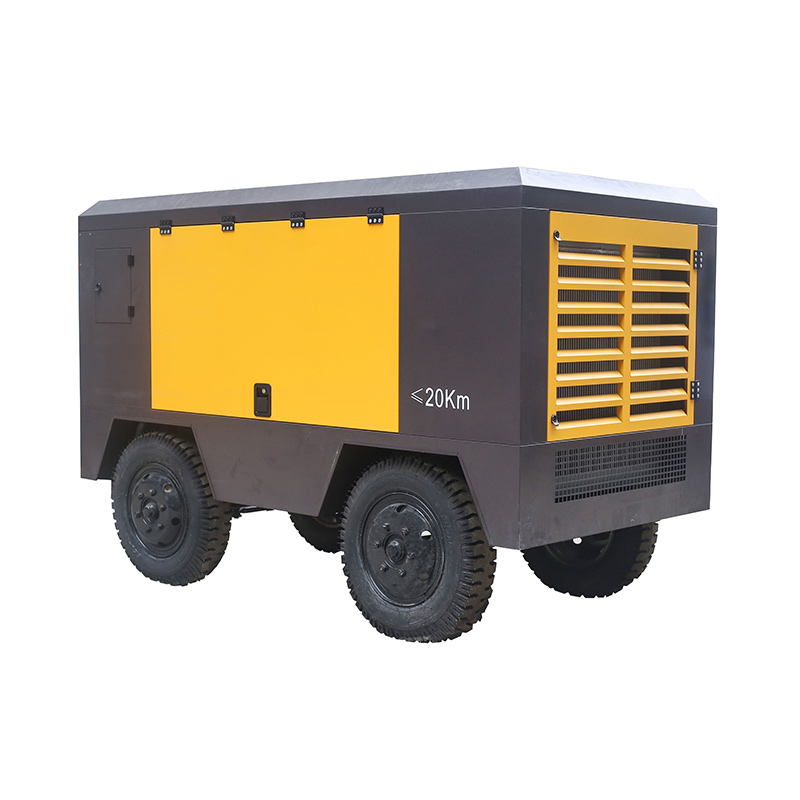

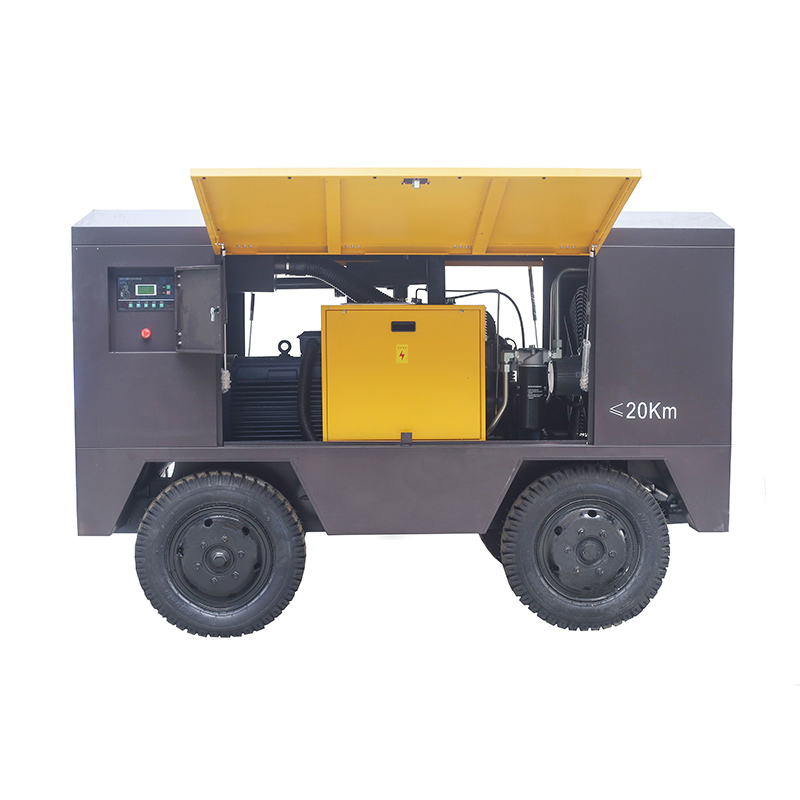

【Origin Pic】	1.Suitable for fixed and non fixed occasions. 2.The integral base and split support make the structure design more reasonable. 3.Box structure and hinge door panel design make maintenance more convenient. 4.Integrated mobile device makes use more safe and reliable. 5.The application site of mobile screw compressor is flexiable. Electric driving mobile screw air compressor

Technical Data Sheet

Electric driving mobile screw air compressor
model		HRY-37D	HRY-45D	HRY-55D	HRY-75D	HRY-90D	HRY-110D	HRY-132D	HRY-160D	HRY-250D
Air flow/working pressure （m³/min/Mpa)		6.0/0.8	8.0/0.8	10/0.8	12/0.8	15/0.8	20/0.8	22/0.8	30/0.8	40/0.8
		5.0/1.0	6.5/1.0	8.5/1.0	10/1.0	13/1.0	17/1.0	20/1.0	28/1.0	38/1.0
		4.5/1.3	5.7/1.3	7.5/1.3	9/1.3	12/1.3	15/1.3	17/1.3	25/1.3	35/1.3
Drive mode		Direct drive
power（kw）		37	45	55	75	90	110	132	160	250
power supply		380V/50Hz
Dimensions	Length mm	2200	2200	2600	2600	2600	3400	3400	5400	5400
	Width mm	1600	1600	1800	1800	1800	1600	1600	2000	2000
	Height mm	1500	1500	1600	1600	1600	1750	1750	2500	2500
net weight	KG	1200	1500	1950	2000	2200	3880	4100	6100	6100
Outlet pipe diameter(inch)		G1½"	G1½"	G¾"&G1½"	G¾"&G2"	G¾"&G2"	G¾"&G1"&G2"	G¾"&G1"&G2"	G¾"&G1"&G2"	G¾"&G1"&G2"
Note		Two wheel	Two wheel	Two wheel	Four wheel	Four wheel	Four wheel	Four wheel	Four wheel	Four wheel
