【Origin Pic】

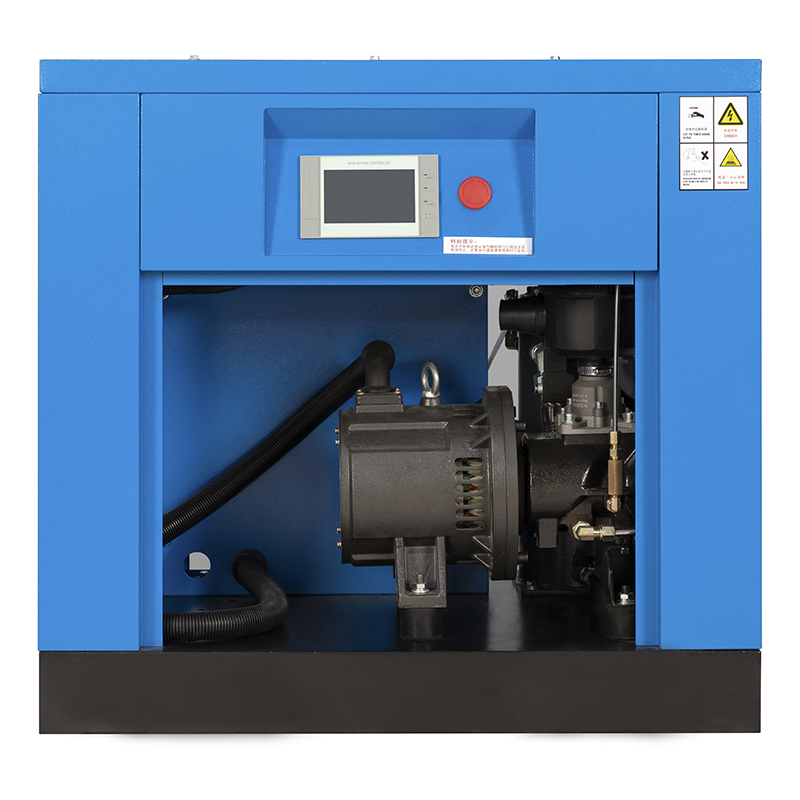

1.Equipped with high efficiency permanent magnet motor, saving power up to 30%-40%.

2.High performance air end is adopted, which has large air displacement and reliable operation.

3.Elastic coupling is used to reduce the starting torque and achieve the lowest energy consumption.

4.Microcomputer intelligent control system, automatic operation, Chinese display, fault alarm and shutdown protection.

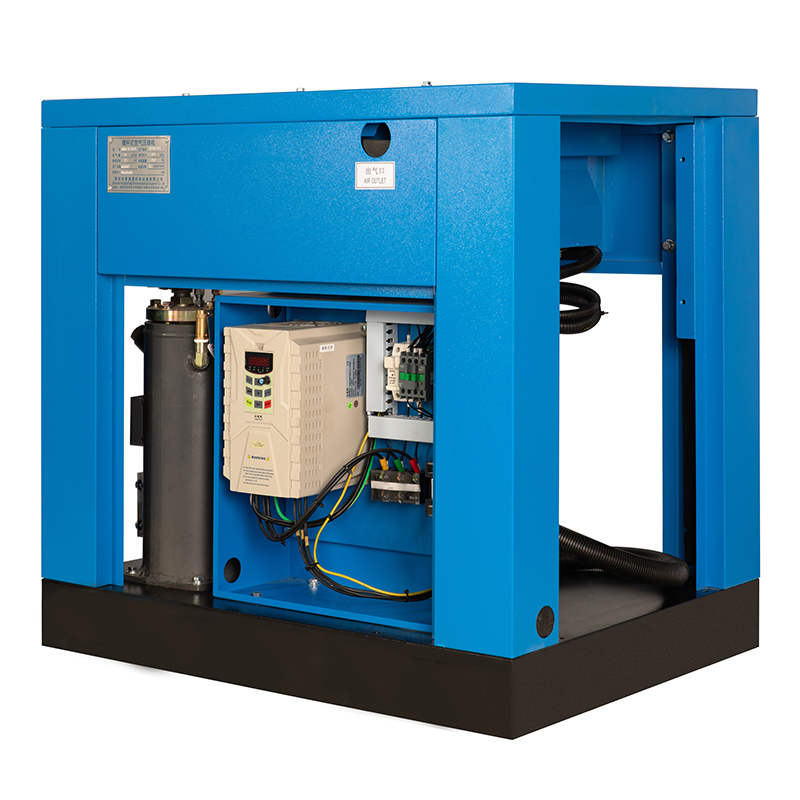

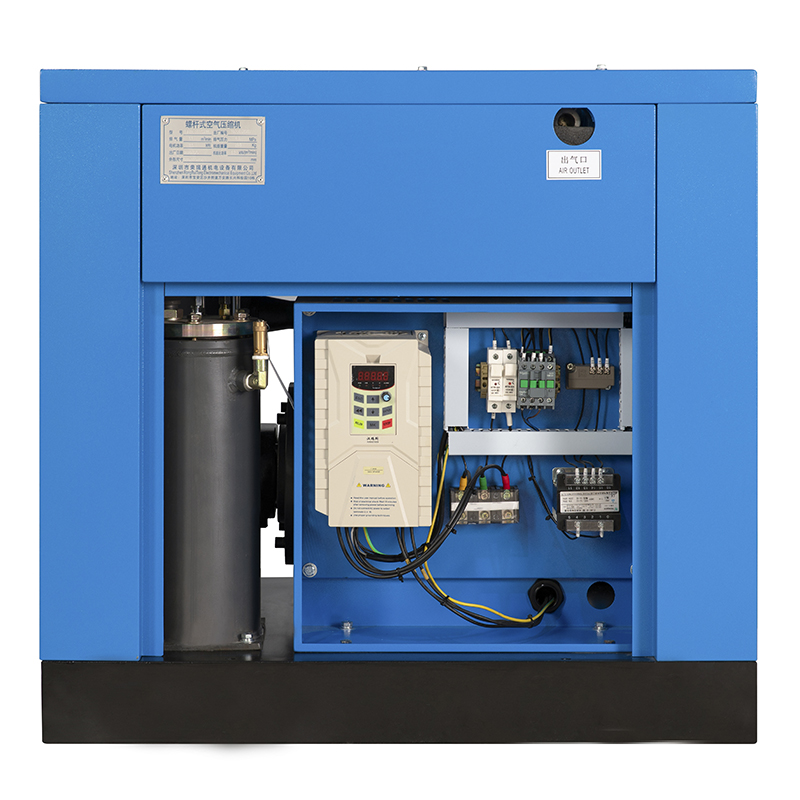

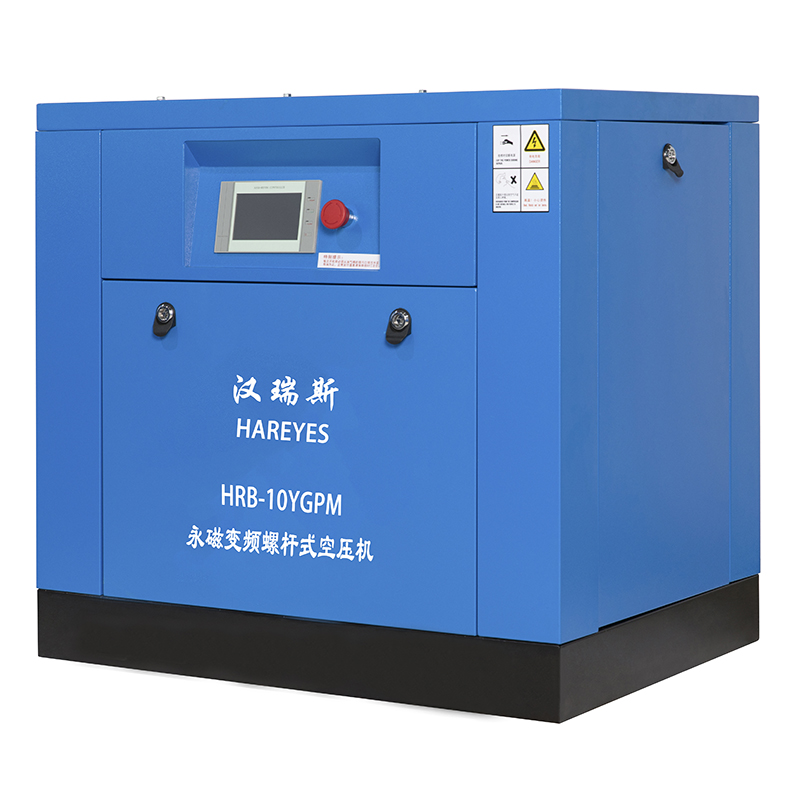

VSD screw air compressor B series 10HP(7.5KW)

Technical Data Sheet
VSD screw air compressor B series
model HRB-10YGPM HRB-15YGPM HRB-20YGPM HRB-25YGPM HRB-30YGPM HRB-40YGPM HRB-50YGPM HRB-60GPM HRB-75GPM HRB-100GPM HRB-125GPM HRB-150GPM HRB-175GPM HRB-200GPM
Exhaust volume/exhaust working(m³/min/Mpa) 1.4/0.7 1.8/0.7 2.5/0.7 3.2/0.7 3.6/0.7 5.3/0.7 6.6/0.7 7.4/0.7 10.0/0.7 13.4/0.7 16.2/0.7 21.0/0.7 24.5/0.7 28.7/0.7
1.1/0.8 1.7/0.8 2.3/0.8 2.8/0.8 3.4/0.8 5.0/0.8 6.3/0.8 7.15/0.8 9.3/0.8 12.7/0.8 15.0/0.8 19.8/0.8 24.0/0.8 27.6/0.8
0.9/1.0 1.3/1.0 2.0/1.0 2.7/1.0 3.1/1.0 4.5/1.0 5.8/1.0 6.2/1.0 8.5/1.0 11.2/1.0 13.8/1.0 17.4/1.0 20.5/1.0 24.6/1.0
0.8/1.2 1.1/1.2 1.6/1.2 2.4/1.2 2.8/1.2 4.0/1.2 5.0/1.2 5.6/1.2 7.6/1.2 10.0/1.2 11.3/1.2 14.8/1.2 17.4/1.2 21.5/1.2
Lubricating oil quantity(L) 10 15 15 15 22 22 30 30 65 65 72 80 80 80
noise dB(A) 66±2 68±2 72±2 75±2
Transmission method Direct drive
Power supply 380V/50Hz
Power (kw) 7.5 11 15 18.5 22 30 37 45 55 75 90 110 132 160
Startup method Frequency conversion start
Dimensions Length(mm) 850 1080 1080 1225 1225 1340 1340 1340 1800 1800 1800 2400 2400 2400
width(mm) 600 680 680 830 830 950 950 950 1250 1250 1250 1470 1470 1470
height(mm) 800 1000 1000 1100 1100 1200 1200 1200 1570 1570 1570 1840 1840 1840
net weight KG 140 228 236 270 307 396 424 480 932 1013 1070 1650 1770 1890
Outlet pipe diameter(inch) G1 G1-½ G2 DN65
