1.Equipped with high efficiency permanent magnet motor, saving power up to 30%-40%.
2.High performance air end is adopted, which has large air displacement and reliable operation.
3.Elastic coupling is used to reduce the starting torque and achieve the lowest energy consumption.
4.Microcomputer intelligent control system, automatic operation, Chinese display, fault alarm and shutdown protection.
|
|

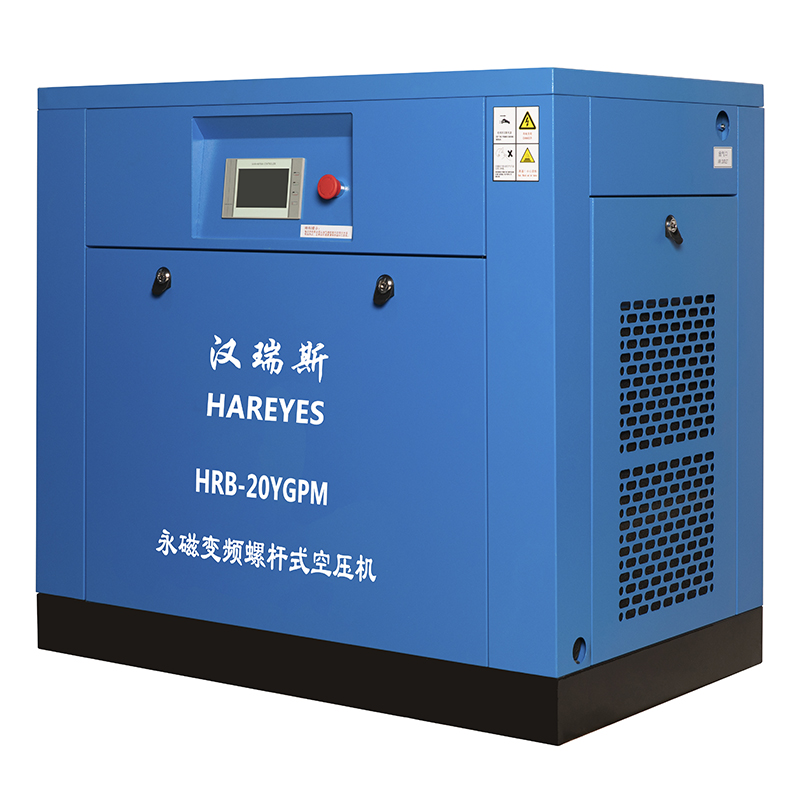

VSD screw air compressor B series 20HP(15KW)
VSD screw air compressor B series |
model |
HRB-10YGPM |
HRB-15YGPM |
HRB-20YGPM |
HRB-25YGPM |
HRB-30YGPM |
HRB-40YGPM |
HRB-50YGPM |
HRB-60GPM |
HRB-75GPM |
HRB-100GPM |
HRB-125GPM |
HRB-150GPM |
HRB-175GPM |
HRB-200GPM |
Exhaust volume/exhaust working(m³/min/Mpa) |
1.4/0.7 |
1.8/0.7 |
2.5/0.7 |
3.2/0.7 |
3.6/0.7 |
5.3/0.7 |
6.6/0.7 |
7.4/0.7 |
10.0/0.7 |
13.4/0.7 |
16.2/0.7 |
21.0/0.7 |
24.5/0.7 |
28.7/0.7 |
1.1/0.8 |
1.7/0.8 |
2.3/0.8 |
2.8/0.8 |
3.4/0.8 |
5.0/0.8 |
6.3/0.8 |
7.15/0.8 |
9.3/0.8 |
12.7/0.8 |
15.0/0.8 |
19.8/0.8 |
24.0/0.8 |
27.6/0.8 |
0.9/1.0 |
1.3/1.0 |
2.0/1.0 |
2.7/1.0 |
3.1/1.0 |
4.5/1.0 |
5.8/1.0 |
6.2/1.0 |
8.5/1.0 |
11.2/1.0 |
13.8/1.0 |
17.4/1.0 |
20.5/1.0 |
24.6/1.0 |
0.8/1.2 |
1.1/1.2 |
1.6/1.2 |
2.4/1.2 |
2.8/1.2 |
4.0/1.2 |
5.0/1.2 |
5.6/1.2 |
7.6/1.2 |
10.0/1.2 |
11.3/1.2 |
14.8/1.2 |
17.4/1.2 |
21.5/1.2 |
Lubricating oil quantity(L) |
10 |
15 |
15 |
15 |
22 |
22 |
30 |
30 |
65 |
65 |
72 |
80 |
80 |
80 |
noise dB(A) |
66±2 |
68±2 |
72±2 |
75±2 |
Transmission method |
Direct drive |
Power supply |
380V/50Hz |
Power (kw) |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
160 |
Startup method |
Frequency conversion start |
Dimensions |
Length(mm) |
850 |
1080 |
1080 |
1225 |
1225 |
1340 |
1340 |
1340 |
1800 |
1800 |
1800 |
2400 |
2400 |
2400 |
width(mm) |
600 |
680 |
680 |
830 |
830 |
950 |
950 |
950 |
1250 |
1250 |
1250 |
1470 |
1470 |
1470 |
height(mm) |
800 |
1000 |
1000 |
1100 |
1100 |
1200 |
1200 |
1200 |
1570 |
1570 |
1570 |
1840 |
1840 |
1840 |
net weight |
KG |
140 |
228 |
236 |
270 |
307 |
396 |
424 |
480 |
932 |
1013 |
1070 |
1650 |
1770 |
1890 |
Outlet pipe diameter(inch) |
G½ |
G¾ |
G1 |
G1-½ |
G2 |
DN65 |
