1.The air end adopts water lubrication to completely replace the oil lubrication in the past, so as to ensure that the air used by customers is absolutely oil-free and pollution-free.
2.The exhaust temperature is generally not exceed 50 ℃ to ensure that the air in the compression process is close to the isothermal compression process (isothermal compression process is the most energy-saving and power-saving compression process).
3.The maintenance cost is one tenth of the maintenance cost of the general compressor. There are few maintenance parts and only need to replace the air filter element and water filter element.
4.The air end structure design is reasonable, the axial force and radial force balance each other, the spindle vibration is less, the noise is low.
5.Full intelligent control, dynamic display of system working condition, real-time monitoring of important parameters, intelligent automatic switch on and off can completely realize continuous operation under the unattended condition.
|
|
|

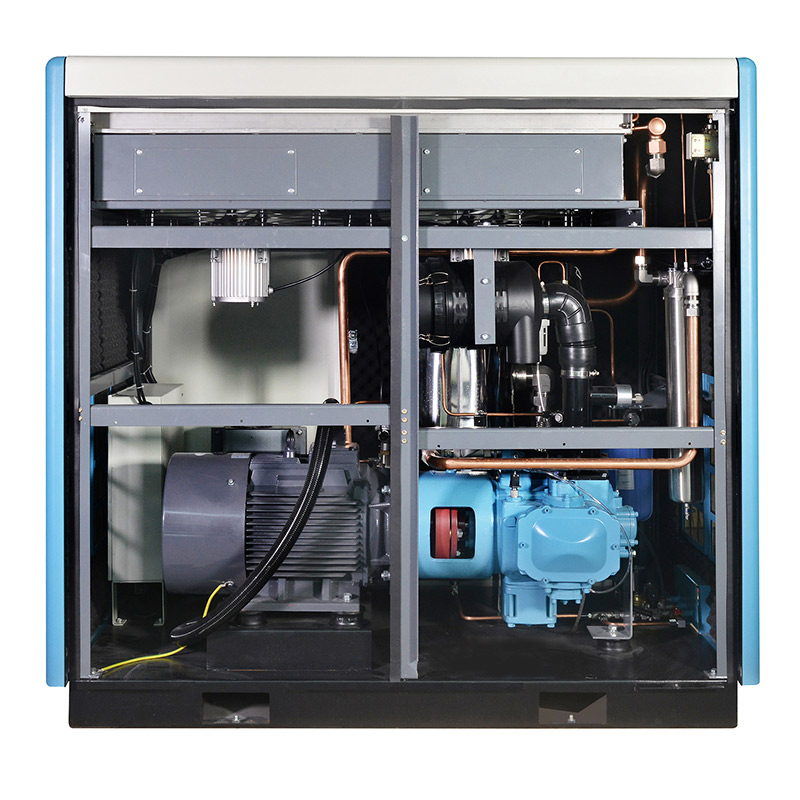

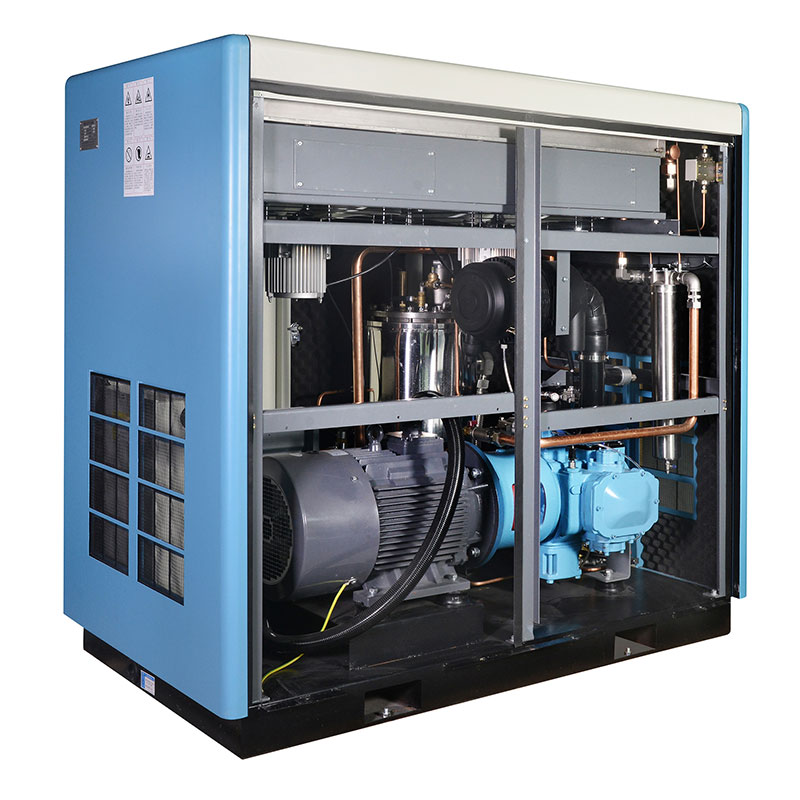

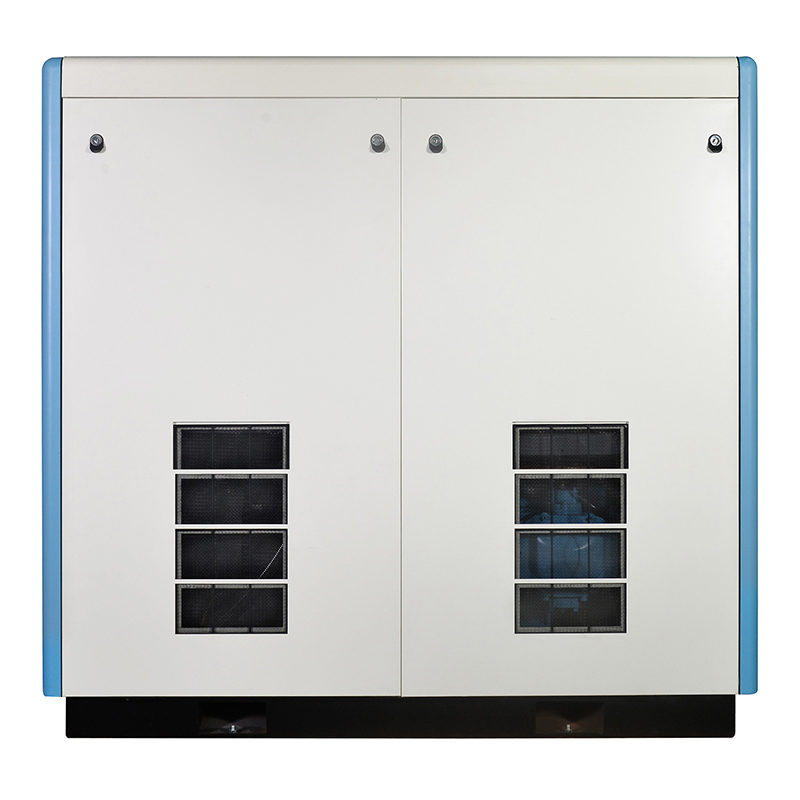

Water lubricated Oil-free Screw Air Compressor
| Water lubricated Oil-free Screw Air Compressor |
| model |
Exhaust pressure Mpa |
Displacement m³/min |
Motor power KW |
Lubricating water （L） |
Pipe diameter |
noise dB(A） |
Dimensions L*W*H(mm) |
weight (kg） |
| HR-10GPMWF |
0.7 |
0.5~1.3 |
7.5 |
20 |
3/4" |
57 |
1100×750×1350 |
430 |
| 0.8 |
0.4~1.1 |
| 1 |
0.3~0.9 |
| HR-15GPMWF |
0.7 |
0.7~1.7 |
11 |
20 |
3/4" |
57 |
1100×750×1350 |
450 |
| 0.8 |
0.6~1.5 |
| 1 |
0.5~1.3 |
| 1.25 |
0.45~1.2 |
| HR-20GPMWF/S |
0.7 |
1.0~2.5 |
15 |
25 |
1" |
57 |
1400×820×1500 |
570 |
| 0.8 |
0.9~2.2 |
| 1 |
0.8~2.0 |
| 1.25 |
0.6~1.6 |
| HR-25GPMWF/S |
0.7 |
1.3~3.2 |
18.5 |
30 |
1" |
58 |
1400×820×1500 |
620 |
| 0.8 |
1.1~2.8 |
| 1 |
1.0~2.5 |
| 1.25 |
0.8~2.1 |
| HR-30GPMWF/S |
0.7 |
0.56~3.7 |
22 |
30 |
1" |
60 |
1400×820×1500 |
640 |
| 0.8 |
0.52~3.4 |
| 1 |
0.45~3.0 |
| 1.25 |
0.36~2.5 |
| HR-50GPMWF/S |
0.7 |
1.03~6.2 |
37 |
60 |
11/2" |
61 |
1690×1000×1600 |
1010 |
| 0.8 |
0.91~5.6 |
| 1 |
0.80~5.0 |
| 1.25 |
0.62~4.2 |
| HR-60GPMWS |
0.7 |
1.32~7.6 |
45 |
60 |
11/2" |
65 |
1690×1000×1600 |
1110 |
| 0.8 |
1.16~6.8 |
| 1 |
0.98~6.0 |
| 1.25 |
0.80~5.2 |
| HR-75GPMWS |
0.7 |
1.63~10.0 |
55 |
80 |
2" |
67 |
2050×1200×1500 |
1200 |
| 0.8 |
1.40~9.0 |
| 1 |
1.20~7.8 |
| 1.25 |
0.90~6.0 |
| HR-100GPMWS |
0.7 |
2.07~13.0 |
75 |
100 |
2" |
71 |
2050×1200×1500 |
1550 |
| 0.8 |
1.81~12.0 |
| 1 |
1.56~10.0 |
| 1.25 |
1.26~8.5 |
| HR-125GPMWS |
0.7 |
2.45~16.8 |
90 |
100 |
21/2" |
72 |
2250×1500×1700 |
2250 |
| 0.8 |
2.05~15.0 |
| 1 |
1.82~14.0 |
| 1.25 |
1.50~10.0 |
| HR-150GPMWS |
0.7 |
3.03~20.0 |
110 |
120 |
3" |
74 |
2450×1500×1700 |
2450 |
| 0.8 |
2.69~18.5 |
| 1 |
2.37~16.0 |
| 1.25 |
1.90~12.5 |
| HR-180GPMWS |
0.7 |
3.62~25.0 |
132 |
120 |
3" |
77 |
2450×1500×1700 |
2450 |
| 0.8 |
3.21~23.0 |
| 1 |
2.94~20.0 |
| 1.25 |
2.40~16.0 |
