Guangdong Hareyes Compressor Manufacturing Co., Ltd.

4dhcpmingchen

1.Using high quality refrigeration compressor, stable operation and low noise.

2.The intelligent control system can monitor the temperature, pressure and current in real time and realize the unmanned operation.

3.Using high quality thread copper tube, large heat exchange area and good water removal effect.

4.Novel appearance design and reasonable internal structure for easy maintenance.

Technical Data Sheet

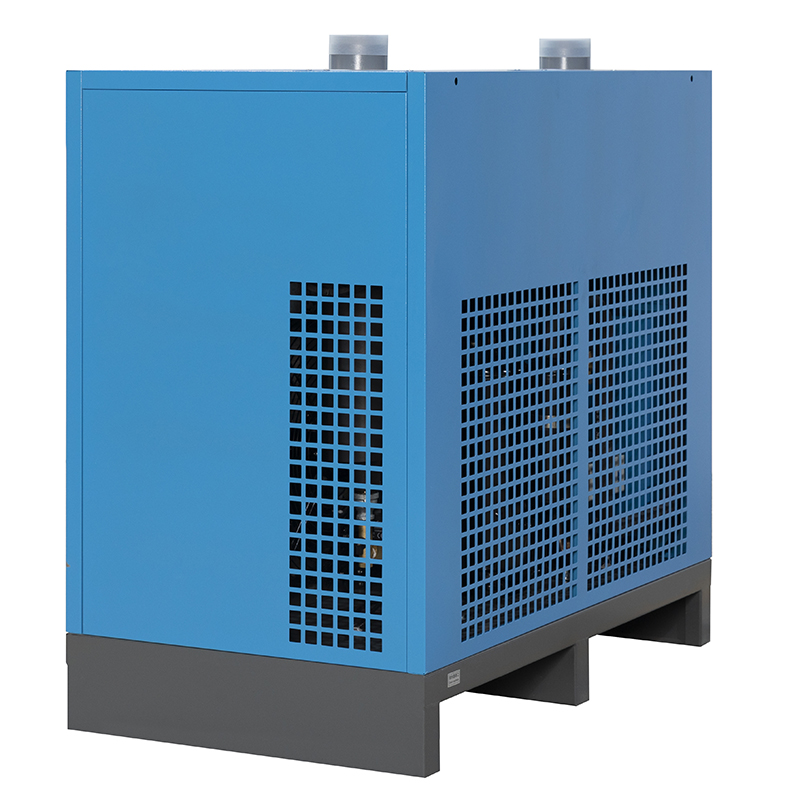

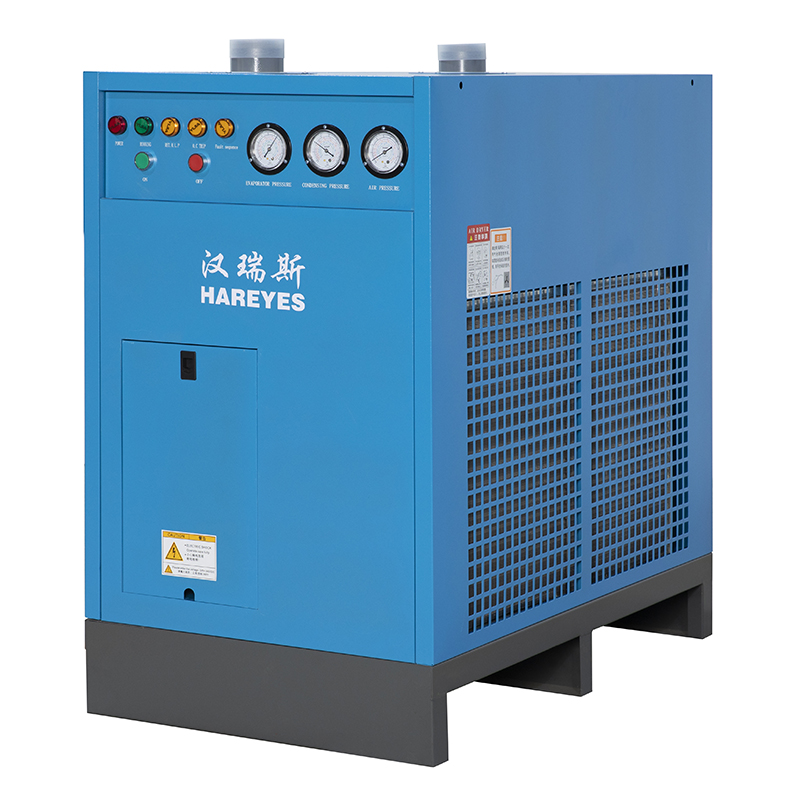

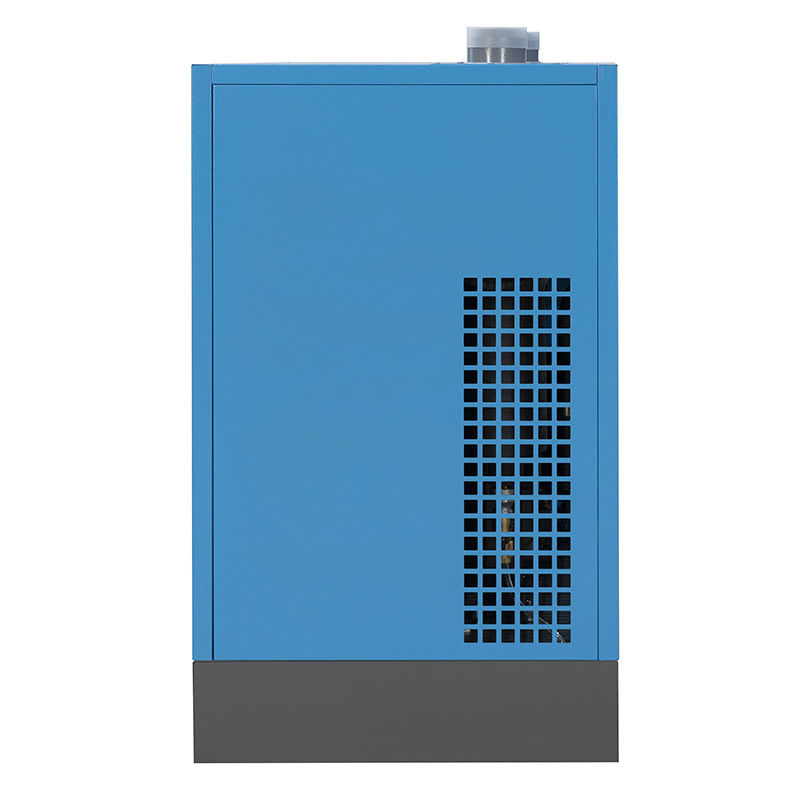

refrigeration dryer B series
model		HB-015L	HB-020L	HB-026L	HB-036L	HB-065L	HB-100L	HB-128L
Processing gas volume (Nm³/min)		1.5	2	2.6	3.6	6.5	10	12.8
Suitable air compressor（KW/HP）		7.5/10	11/15	15/20	22/30	37/50	55/75	75/100
weight（KG）		35	38	40	60	72	120	160
Entrance and exit diameter		DN25	DN25	DN25	DN40	DN50	DN65	DN65
Installed power		300W	410W	540W	850W	1280W	1570W	2250W
power supply（V）		AC 220-240V/50HZ						AC 380V/50HZ
Dimensions（mm）	Length	700	700	700	800	900	1130	1130
	width	390	390	390	470	490	570	620
	heigth	650	650	700	800	850	930	1100
Remarks		Inlet temperature≤45℃　　　environment temperature≤40℃　　　working pressure 0.7-1.0Mpa　　　2-10℃(equivalent to atmospheric dew point -17～-22℃)
