Guangdong Hareyes Compressor Manufacturing Co., Ltd.

4dhcpmingchen

1.Advanced structure design, simple operation, large air displacement and low noise.

2.High performance air end is adopted, which has excellent performance and reliable operation.

3.Large heat exchange area is adopted to improve cooling efficiency and prevent high temperature of machine.

4.icrocomputer intelligent control system, automatic operation, English display, fault alarm and shutdown protection.

Technical Data Sheet

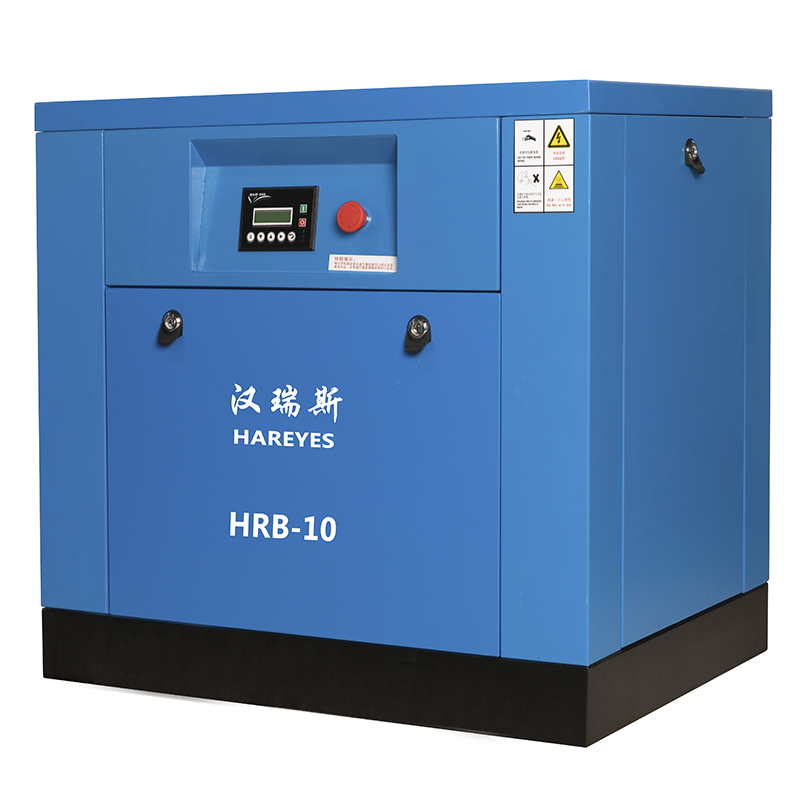

Standard screw air compressor
Model		HRB-10	HRB-15	HRB-20	HRB-25	HRB-30	HRB-40	HRB-50	HRB-60	HRB-75	HRB-100	HRB-125	HRB-150	HRB-175	HRB-200	HRB-250	HRB-300	HRB-350
Exhaust volume/exhaust working（m³/min/Mpa）		1.3/0.7	1.7/0.7	2.4/0.7	3.2/0.7	3.6/0.7	5.3/0.7	6.6/0.7	7.4/0.7	10.0/0.7	13.4/0.8	16.2/0.7	21.0/0.7	24.5/0.7	28.7/0.7	32.0/0.7	35.5/0.7	42.0/0.7
		1.1/0.8	1.5/0.8	2.3/0.8	2.9/0.8	3.3/0.8	5.0/0.8	6.2/0.8	7.0/0.8	9.2/0.8	12.6/0.8	15.0/0.8	19.8/0.8	23.2/0.8	27.5/0.8	30.5/0.8	34.3/0.8	40.5/0.8
		0.9/1.0	1.3/1.0	2.0/1.0	2.7/1.0	3.2/1.0	4.5/1.0	5.7/1.0	6.2/1.0	8.5/1.0	11.2/1.0	13.8/1.0	17.4/1.0	20.5/1.0	24.6/1.0	27.5/1.0	30.2/1.0	38.5/1.0
		0.8/1.2	1.1/1.2	1.7/1.2	2.4/1.2	2.8/1.2	4.0/1.2	5.0/1.2	5.6/1.2	7.6/1.2	10.0/1.2	11.3/1.2	14.8/1.2	17.4/1.2	21.5/1.2	24.8/1.2	27.8/1.2	34.6/1.2
Lubricating oil quantity(L)		10	15		22		30			65		72	80		110		125
noise dB（A）		70±2											72±2		80±2		82±2
Transmission method		Direct drive
Power supply		380V/50Hz
Power (kw)		7.5	11	15	18.5	22	30	37	45	55	75	90	110	132	160	185	220	250
Startup method		Y-△Start
Dimensions	Length（mm）	850	1080	1080	1225	1225	1340	1340	1340	1800	1800	1800	2400	2400	2500	3200	3200	3200
	width（mm）	600	680	680	830	830	950	950	950	1250	1250	1250	1470	1500	1650	1980	1980	1980
	height（mm）	800	1000	1000	1100	1100	1200	1200	1200	1570	1570	1570	1840	1840	1840	2150	2150	2150
net weight	KG	180	288	302	320	410	536	576	597	1022	1107	1186	1643	1752	1873	2450	2630	2760
Outlet pipe diameter（inch）		G½	G¾		G1		G1 ½			G2			DN65		DN80
